POLYMER SOLUTIONS
INTEGRA
P 450
- 8 independently controlled heating zones for more consistent part production and efficient use of build volume
- Thermal imaging camera for improved quality control and data-capturing
- Designed to enable maximum material flexibility, up to 300° C
- Future-proof modular design, with exchangable optics tray, frame system, and more
- 120 Watt CO₂ laser producing the fastest scanning times in the industry
- Innovative dual-roller recoating system applies material with a speed of up to 0.4 meters per second
- Open software interfaces and user-friendly tools support application and material development
- Intuitive user operation: EOSPRINT 2 enables software integration from CAD model to print
* This system is available only to customers in North America.

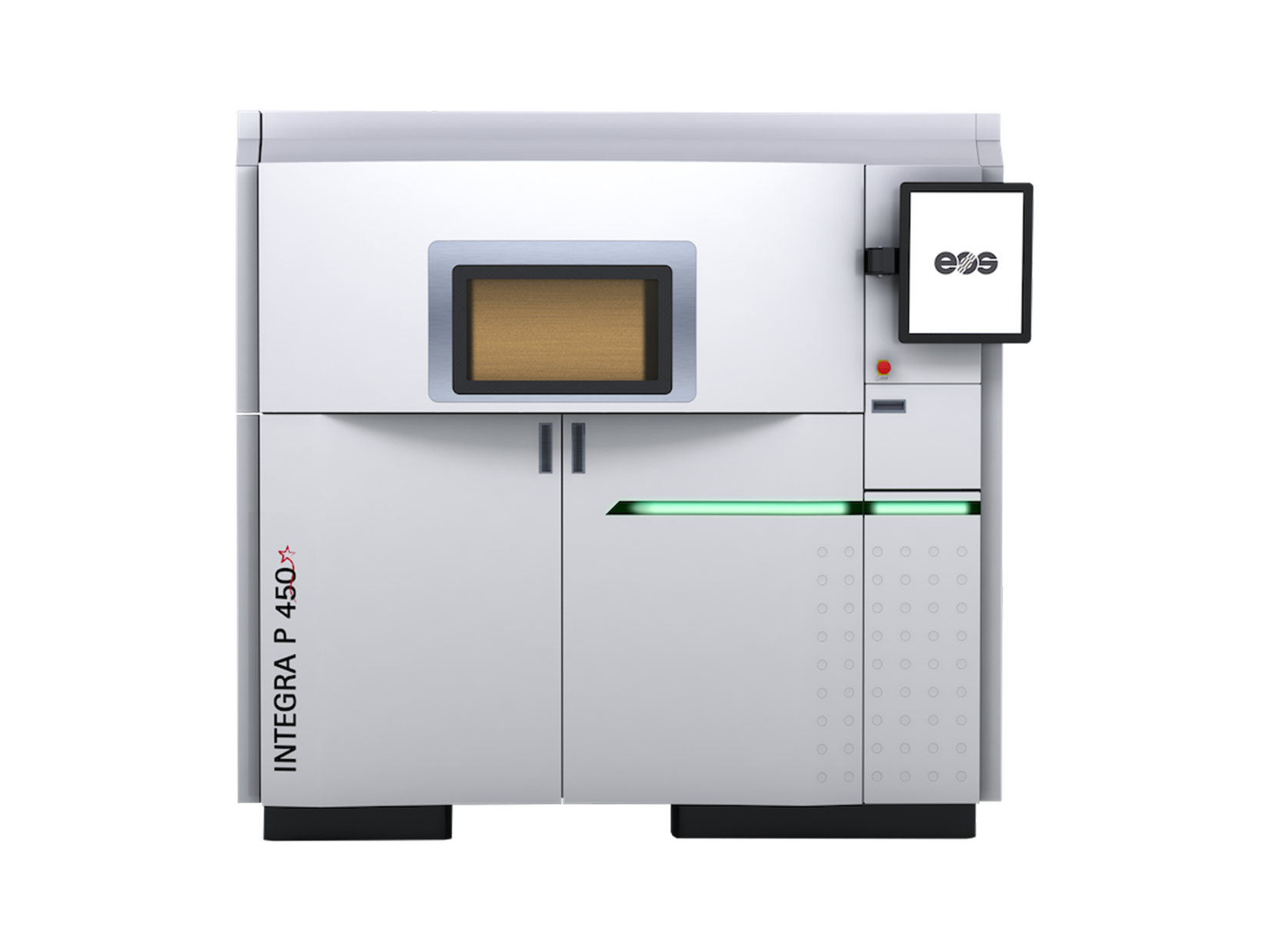

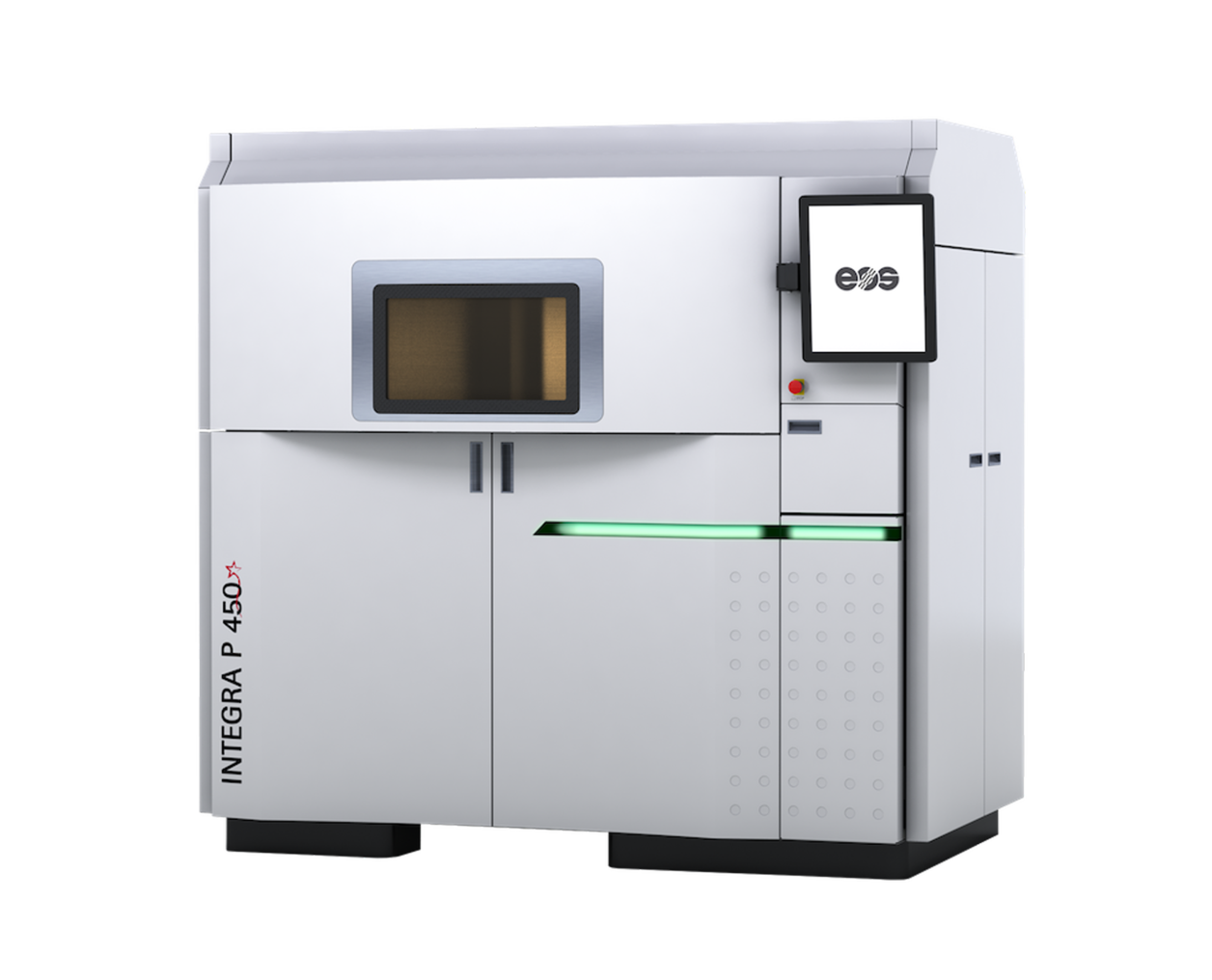

INTEGRA P 450
Built upon decades of industry feedback, the INTEGRA P 450 helps you move from prototyping to serial production. This system is available only to customers in North America.
Built upon decades of industry feedback, the INTEGRA P 450 bridges the gap from prototyping to serial production, offering simplicity, serviceability, sustainability, and scalability in an open laser sintering platform.
EXPOSURE MODULE
LASERS
- 1 x
120 W
INTEGRA P 450
TECHNICAL DATA
| BUILD VOLUME | 420 x 420 x 500* mm (16.5 x 16.5 x 19.7 in) |
| LASER TYPE | CO₂; 1 x 120 W |
| SCAN SPEED | up to 12.7 m/s (41.7 ft/s) |
| POWER SUPPLY | 1 x 40 A |
| POWER CONSUMPTION | max. 12.5 kW / typical 8.3 kW |
* Height includes build plate
DIMENSIONS & WEIGHT
INTEGRA P 450
Height: 2,460 mm / Weight approx. 1,815 kg
MATERIALS & PROCESSES
EOS has exceptional materials expertise and a comprehensive portfolio of highly developed materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the desired property profiles in the best possible way for your products
INTEGRA P 450
-
HT-23
