METAL SOLUTIONS

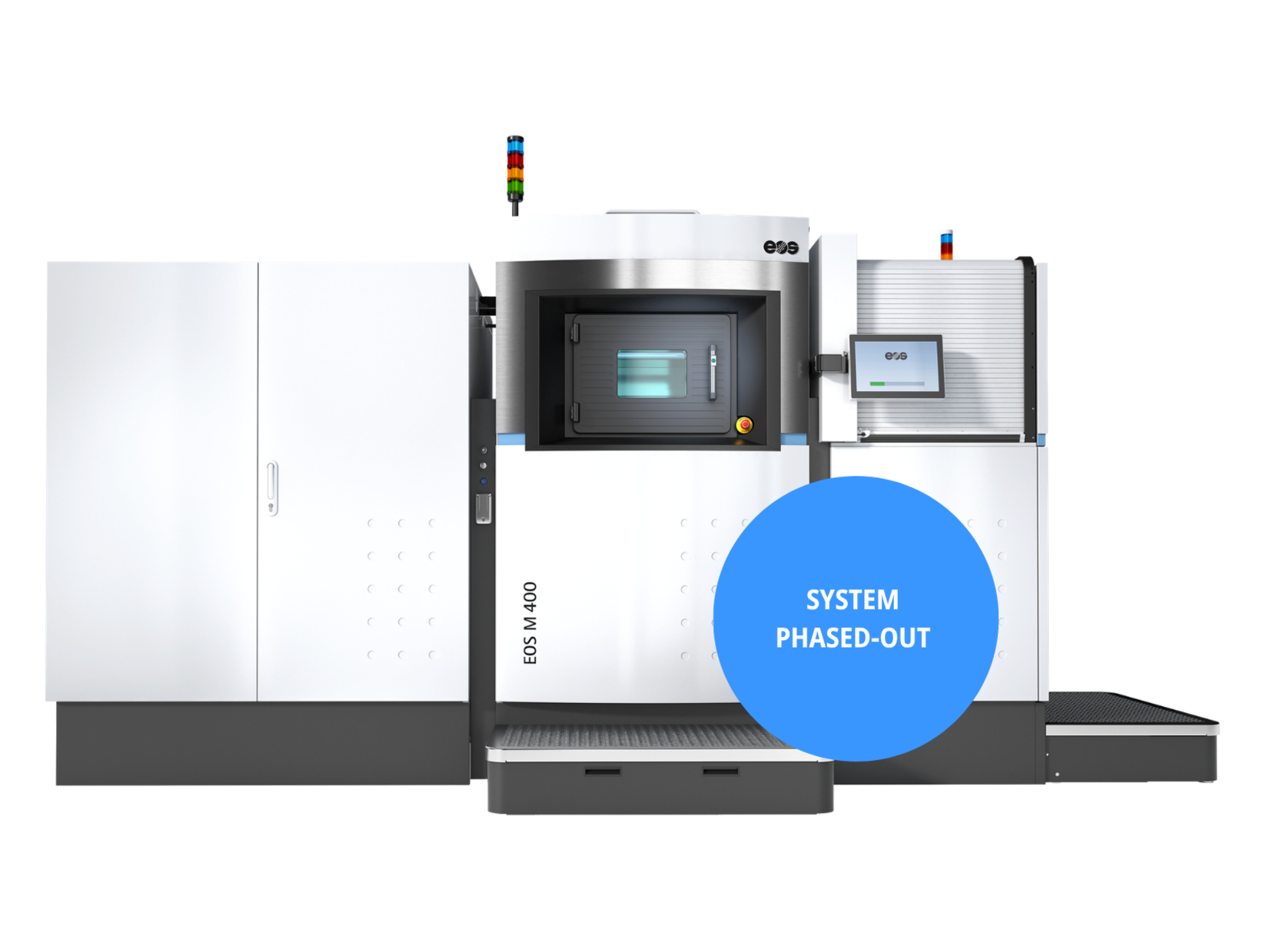

EOS M 400
  • Increased productivity thanks to 1000-watt laser power
  • Modular platform with process and set-up station
  • Build volume of 400 x 400 x 400 mm

EOS M 400

Proven DMLS Quality for Industrial Production

With a 400 x 400 x 400 mm build volume, and your choice of one 1000 W or four 400 W lasers, the EOS M 400 Series combines the highest productivity with reliable and repeatable DMLS part quality. Powered by an extensive portfolio of materials and processes, the EOS M 400 Series enables the develop- ment and production of a wide variety of applications. The EOS M 400 Series is easily integrated in your production - both from a part and data flow perspective. In addition, with the EOS Shared Modules you can easily expand your machine park as demand grows - from one to many systems in one or many facilities worldwide.

EXPOSURE MODULE

LASERS
  • 1 x
    1 kW

The precise Yb fiber lasers with their fixed focus expose a square 400 x 400 mm area.

SOFTWARE

  • EOS BUILD

    EOS Build subscriptions offer enhanced EOSPRINT features for multiple users with flexible material management; Build+ adds more licenses, advanced materials, and training for up to 5 users.

  • EOS SYSTEM SUITE

    EOS System Suite optimizes production by streamlining processes, integrating with MES and shop-floor IT systems, and generating detailed quality reports.

EOS M 400

TECHNICAL DATA

BUILD VOLUME 400 x 400 x 400* mm (15.7 x 15.7 x 15.7 in)
LASER TYPE Yb-fiber laser; 1 x 1000 W
PRECISION OPTICS 1 F-theta-lens(es); 1 High-speed scanner(s)
SCAN SPEED up to 7.0 m/s (23.0 ft/s)
FOCUS DIAMETER approx. 90 µm (0.00354 in)
POWER SUPPLY 1 x 50 A
POWER CONSUMPTION max. 50.2 kW / typical 16.2 kW
COMPRESSED AIR SUPPLY 7 Bar; 20 m³/h (102 psi; 706 ft³/h)

* Height includes build plate

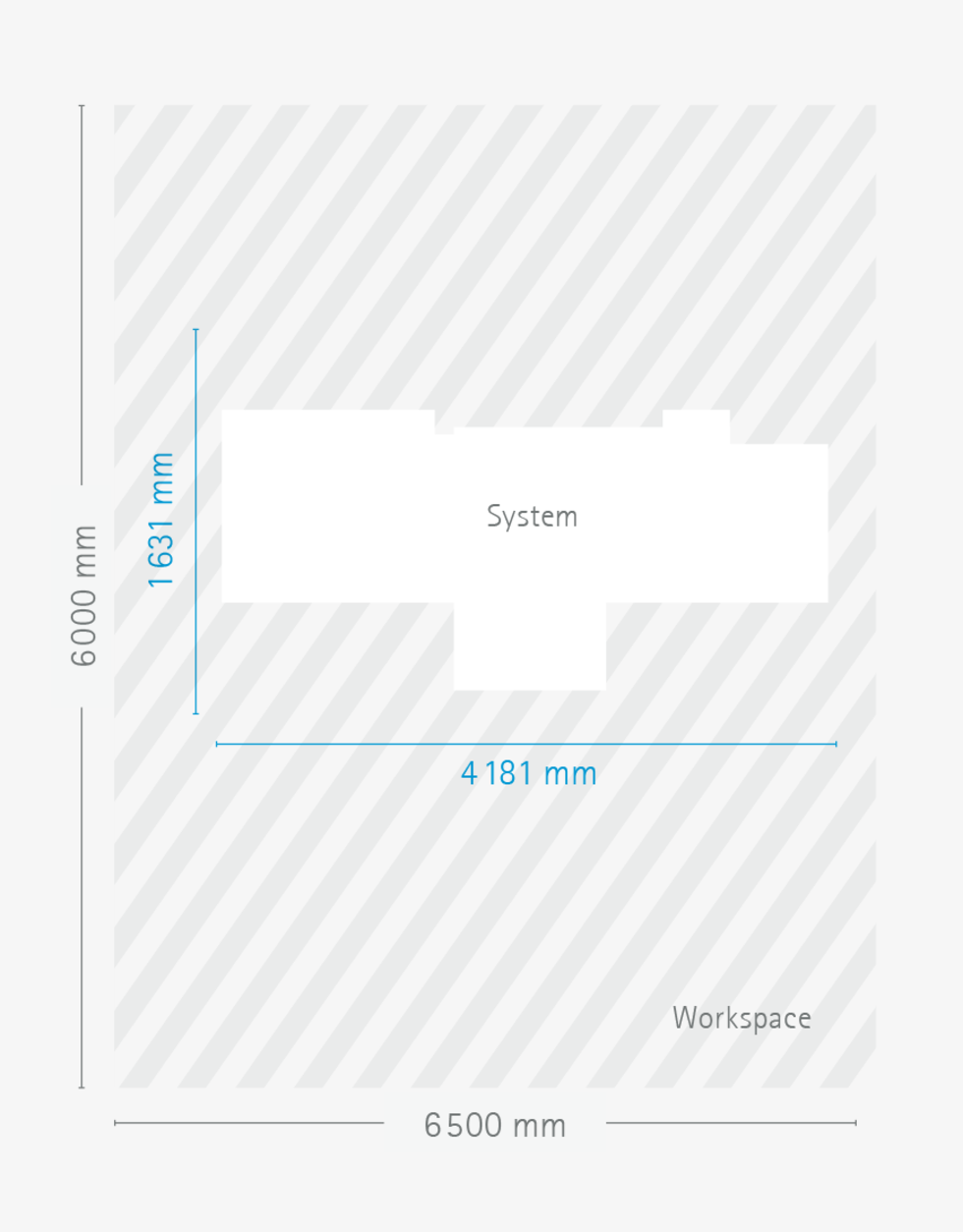

DIMENSIONS & WEIGHT

EOS M 400 with IPM M Setup Station L

Height: 2,340 mm / Weight approx. 4,635 kg

System
Workspace

MATERIALS & PROCESSES

EOS has exceptional materials expertise and a comprehensive portfolio of highly developed materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the desired property profiles in the best possible way for your products

EOS M 400

  • EOS Aluminium AlF357

  • EOS Aluminium AlSi10Mg

  • EOS Aluminium Al2139 AM

  • EOS CopperAlloy CuNi30

  • EOS CopperAlloy CuCrZr

  • EOS MaragingSteel MS1

  • EOS NickelAlloy IN718

  • EOS StainlessSteel 316L

  • EOS Titanium Ti64

  • EOS Titanium Ti64ELI

OPTIONAL ACCESSORIES

IPCM M Extra

Manual and flexible powder handling
