METAL SOLUTIONS
EOS
M 300-4 1kW
- Reliable and repeatable quality
- Up to 10 x higher productivity in Aluminium
- Easily integrated in your production environment
EXPOSURE MODULE
LASERS
- 4 x
1 kW
4 precise 1kw lasers expose in a 300 x 300 mm square with each laser covering the entire area.

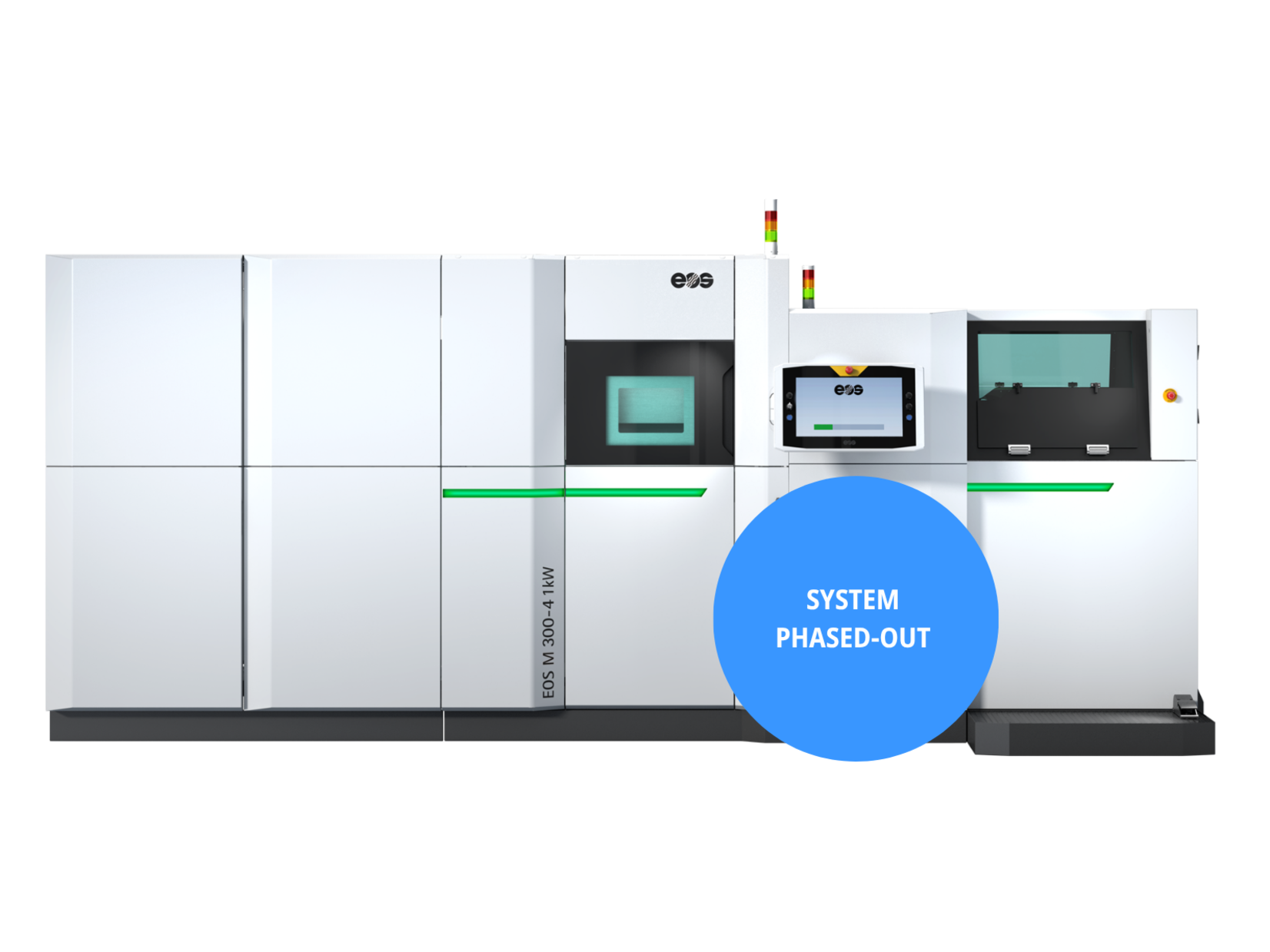

EOS M 300-4 1kW
TECHNICAL DATA
| BUILD VOLUME | 300 x 300 x 400* mm (11.8 x 11.8 x 15.7 in) |
| LASER TYPE | Yb-fiber laser; 4 x 1000 W |
| PRECISION OPTICS | 4 F-theta-lens(es); 4 High-speed scanner(s) |
| SCAN SPEED | up to 7.0 m/s (23.0 ft/s) |
| FOCUS DIAMETER | approx. 100 µm (0.00394 in) |
| POWER SUPPLY | 3 x 63 A |
| POWER CONSUMPTION | max. 19.6 kW / typical 16.0 kW |
| COMPRESSED AIR SUPPLY | 7 Bar; 15 m³/h (102 psi; 530 ft³/h) |
* Height includes build plate

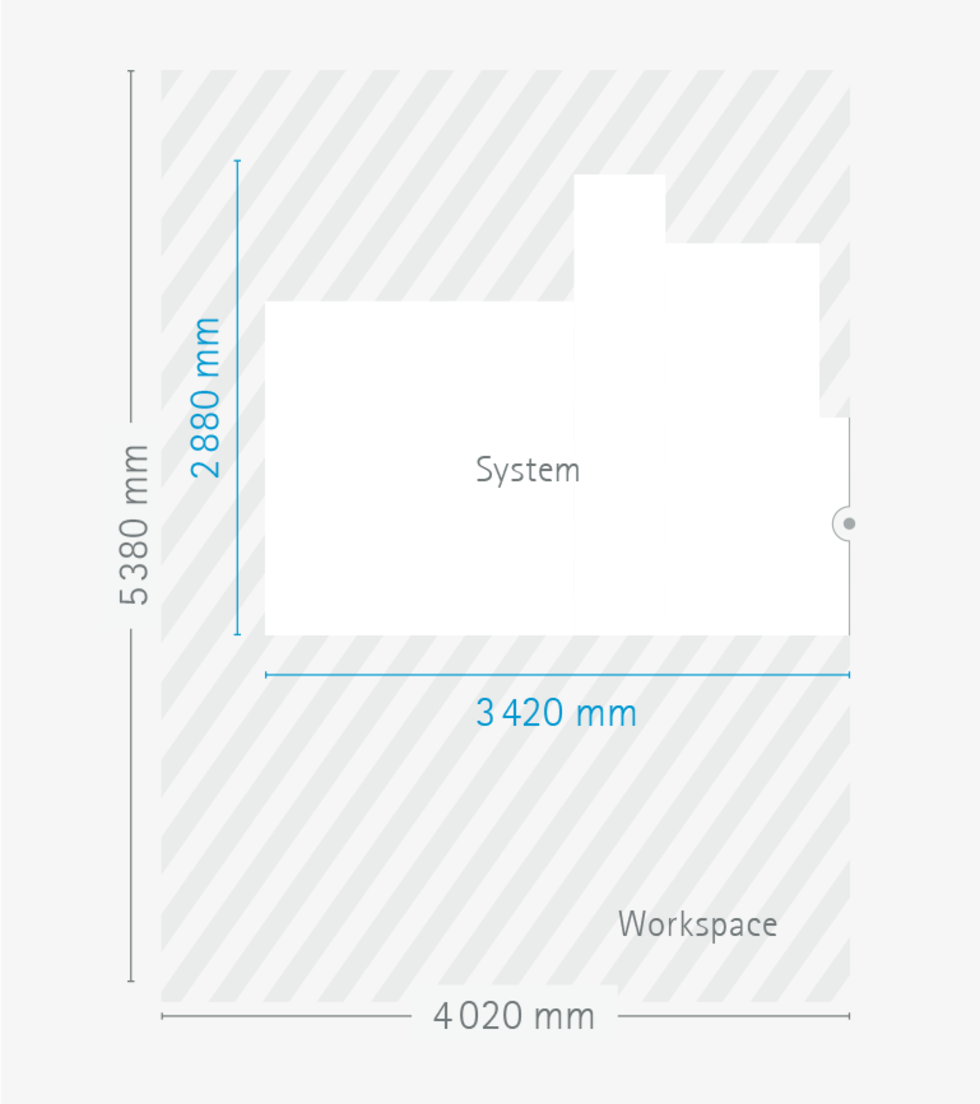

DIMENSIONS & WEIGHT
EOS M 300-4 1kW with Flex Dispenser
Height: 2,340 mm / Weight approx. 5,500 kg
EOS M 300-4 1kW
-
EOS Aluminium AlSi10Mg
-
EOS Copper CuCP
OPTIONAL ACCESSORIES

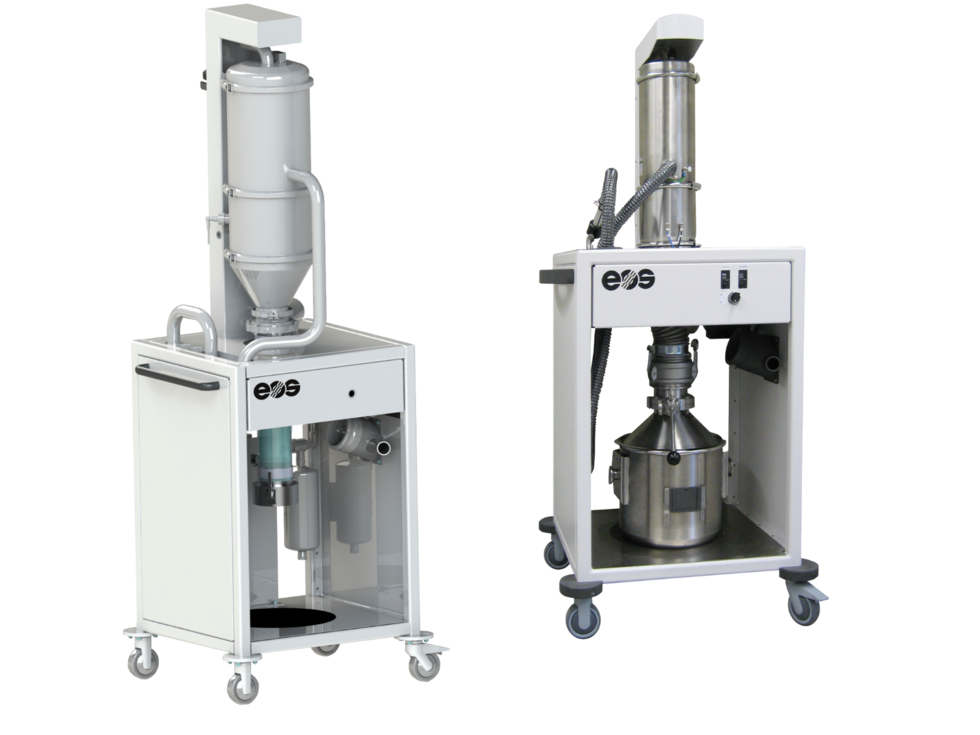

IPCM M Extra
Manual and flexible powder handling

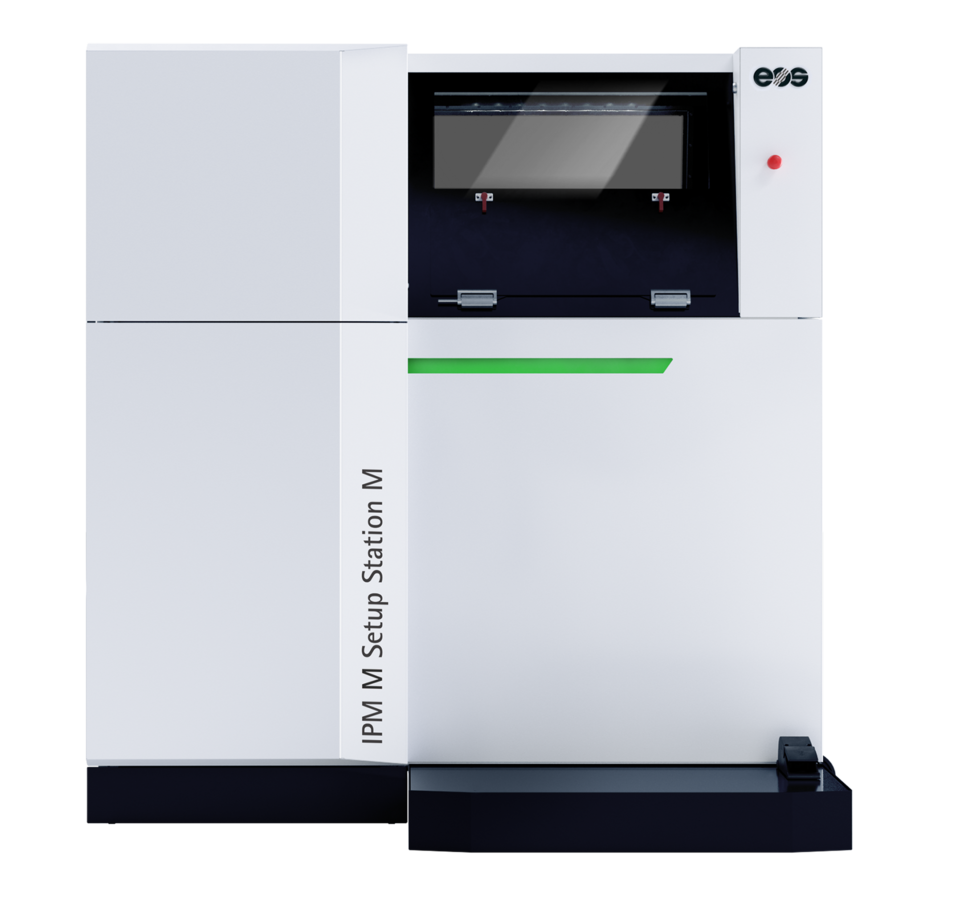

IPM M Setup Station M
Comfortable gas-tight unpacking from two sides and under inert gas
