METAL SOLUTIONS

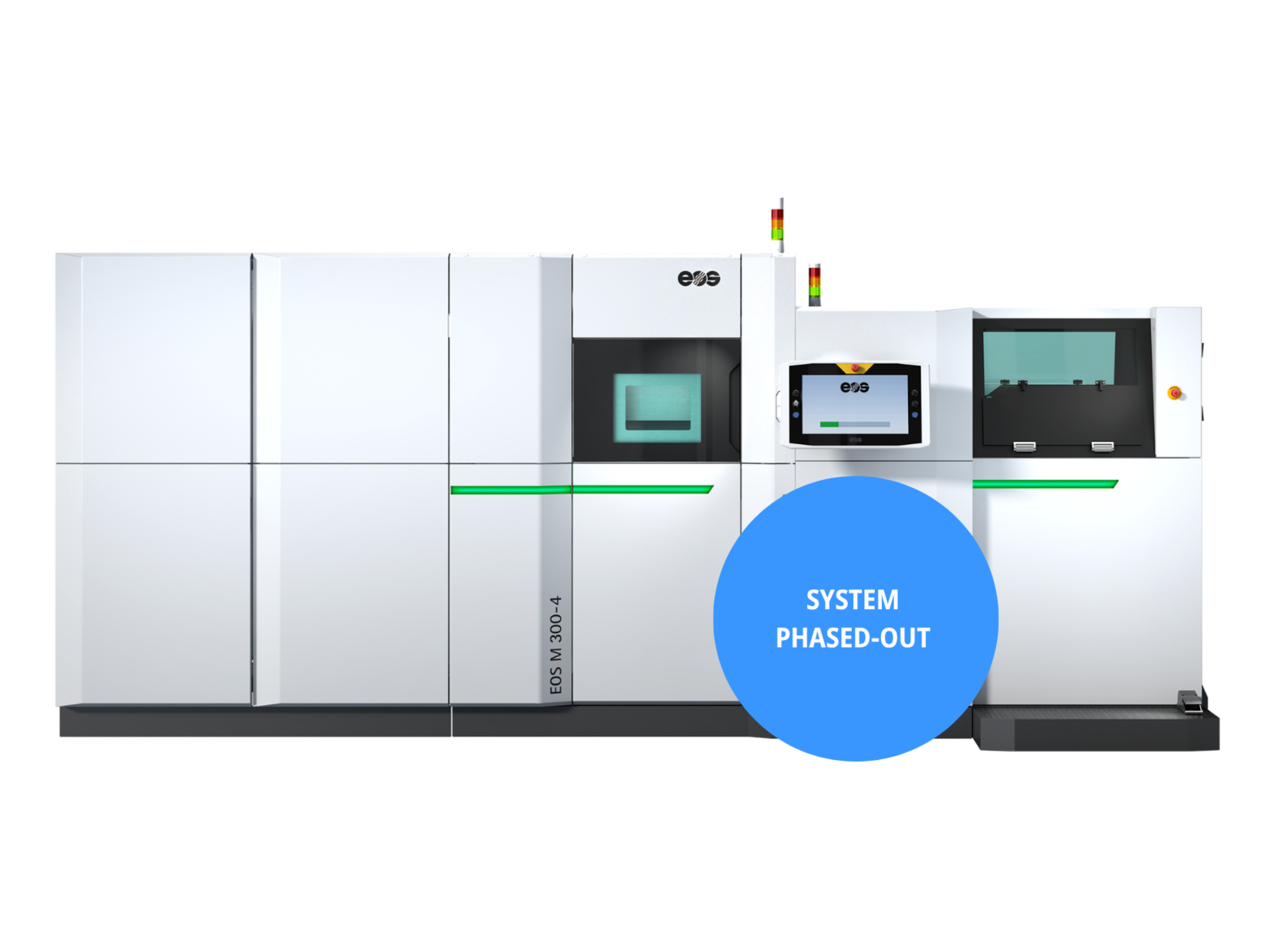

EOS M 300-4
  • Boost Your Productivity: Versatile lasers, different automation options, and an adaptable design add up to game-changing productivity gains.
  • Consistent Quality: Exceptional performance and stability to consistently deliver high-quality components at a reduced cost per part.
  • Designed to Grow: The EOS M 300-4 platform offers the flexibility to easily ramp-up as your production demand increases.

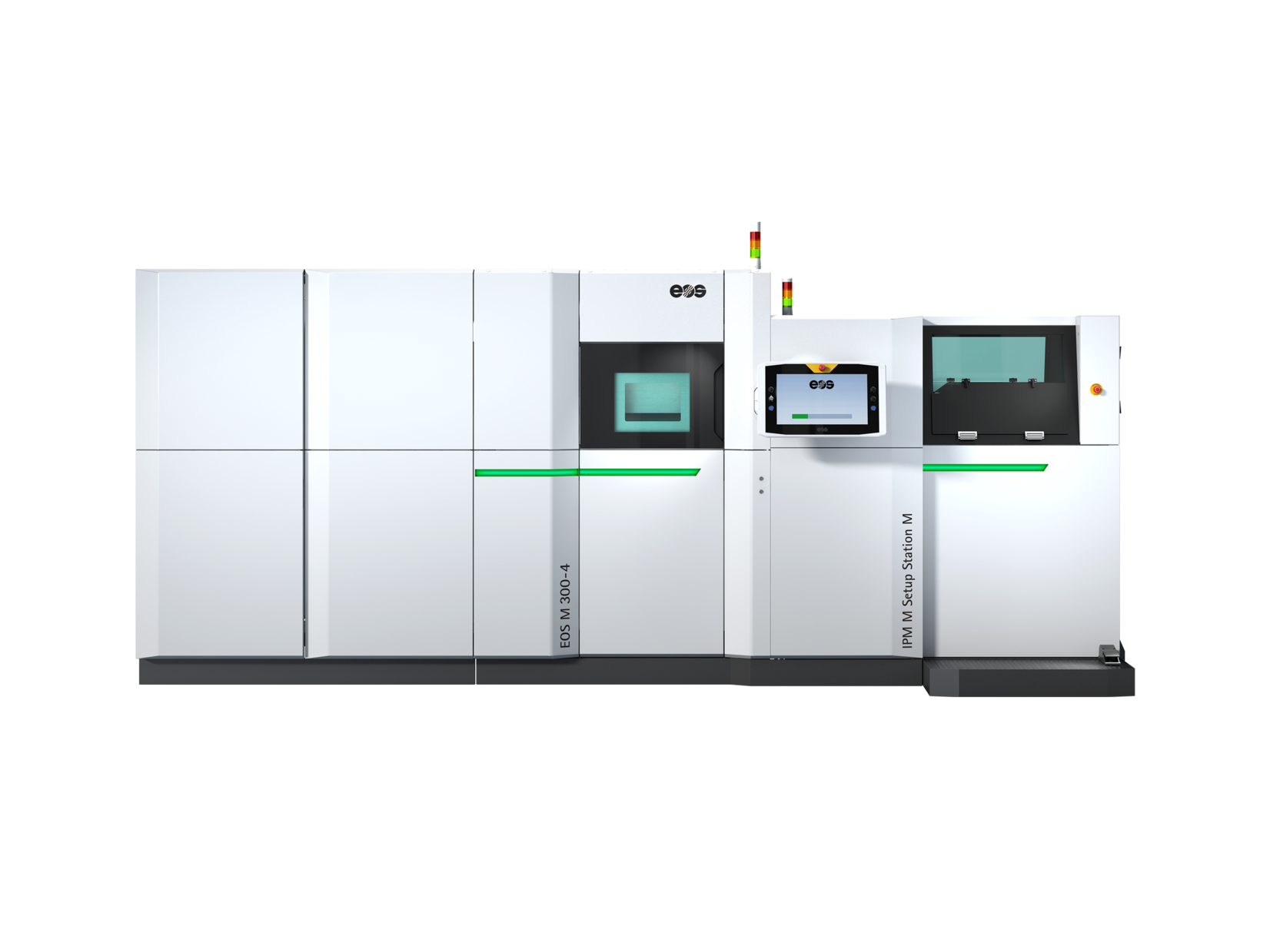

EOS M 300-4

Reliable DMLS Quality to meet your production needs.

Designed for industrial applications, the EOS M 300 Series offers multiple configuration options combined with safety and security features enabling digital Additive Manufacturing. The platform offers the flexiblity to choose the degree of automation that best suits your needs for an optimized workflow as well as the option to easily ramp-up as demand increases.

EXPOSURE MODULE

LASERS
  • 4 x
    400 W

4 precise lasers expose in a 300 x 300mm square with each laser covering the entire area.

SOFTWARE

  • EOS BUILD

    EOS Build subscriptions offer enhanced EOSPRINT features for multiple users with flexible material management; Build+ adds more licenses, advanced materials, and training for up to 5 users.

  • EOS SMART MONITORING

    EOS Smart Monitoring utilizes Exposure OT for comprehensive build monitoring and pairs it with Smart Fusion to regulate heat within set parameters in collaboration with EOS Build/Build+.

  • EOS SYSTEM SUITE

    EOS System Suite optimizes production by streamlining processes, integrating with MES and shop-floor IT systems, and generating detailed quality reports.

EOS M 300-4

TECHNICAL DATA

BUILD VOLUME 300 x 300 x 400* mm (11.8 x 11.8 x 15.7 in)
LASER TYPE Yb-fiber laser; 4 x 400 W
PRECISION OPTICS 4 F-theta-lens(es); 4 High-speed scanner(s)
SCAN SPEED up to 7.0 m/s (23.0 ft/s)
FOCUS DIAMETER approx. 100 µm (0.00394 in)
POWER SUPPLY 3 x 63 A
POWER CONSUMPTION max. 19.6 kW / typical 16.0 kW
COMPRESSED AIR SUPPLY 7 Bar; 15 m³/h (102 psi; 530 ft³/h)

* Height includes build plate

DIMENSIONS & WEIGHT

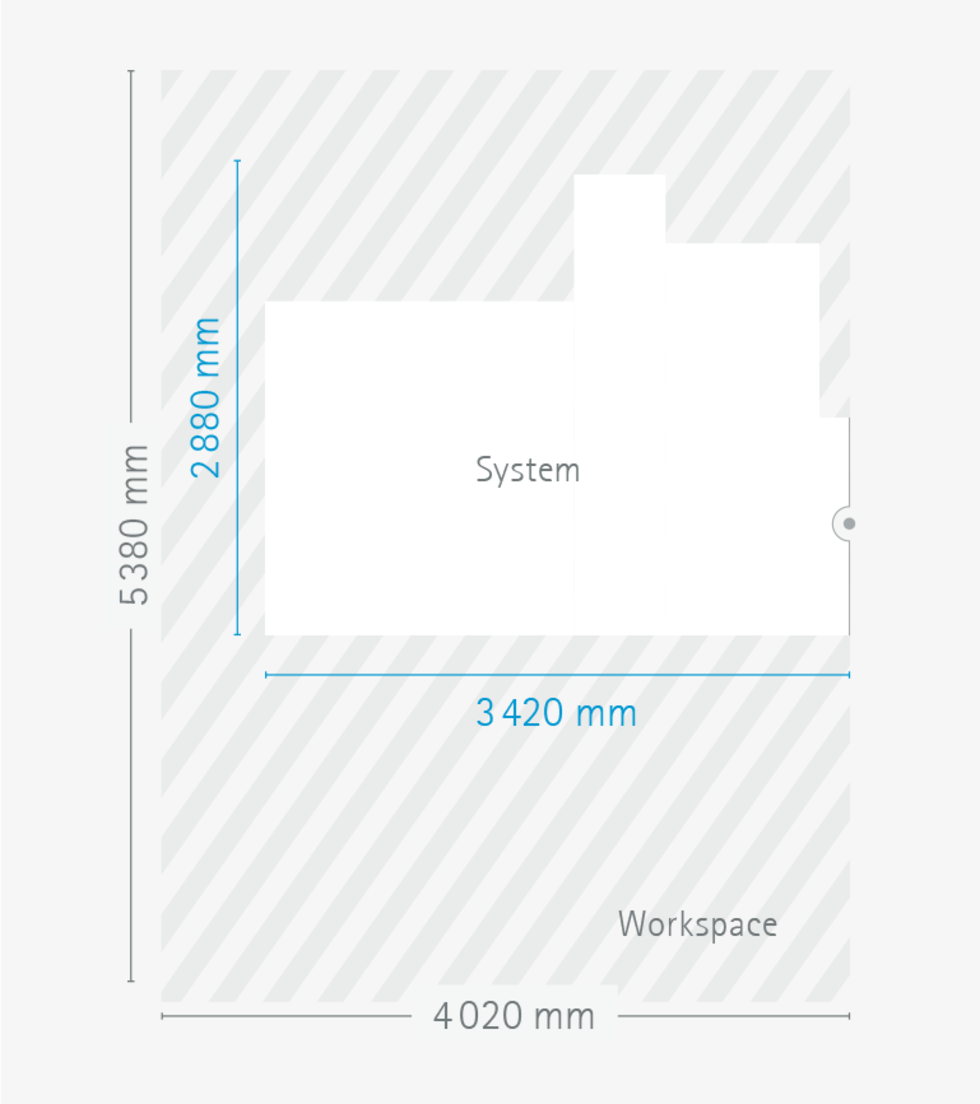

EOS M 300-4 with Flex Dispenser

Height: 2,340 mm / Weight approx. 6,600 kg

System
Workspace

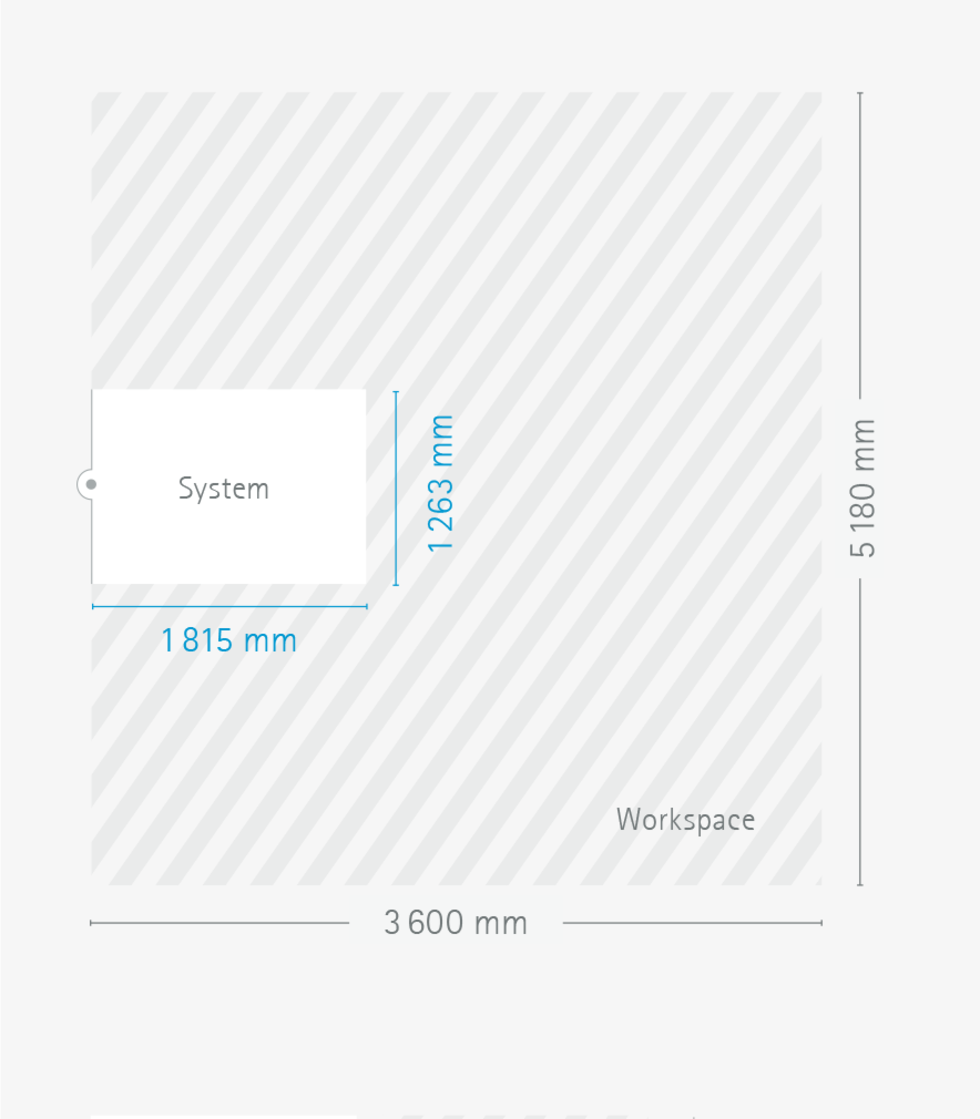

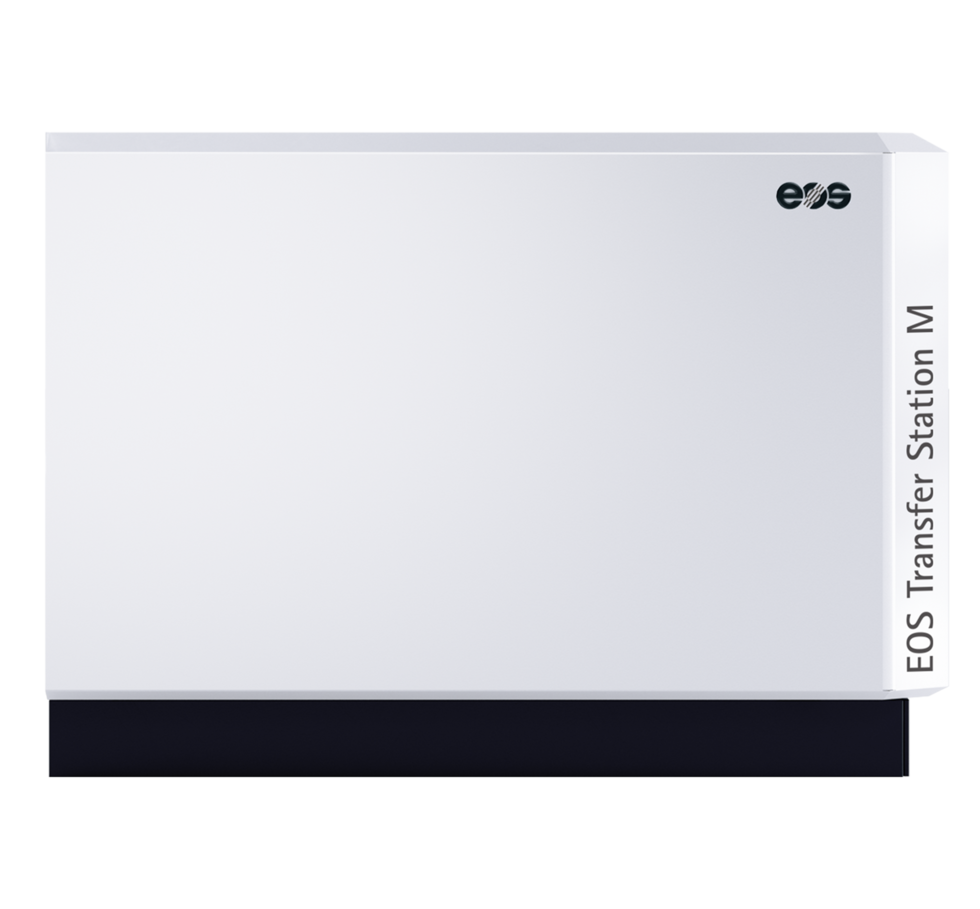

EOS Transfer Station M

Height: 1,300 mm / Weight approx. 1,000 kg

System
Workspace

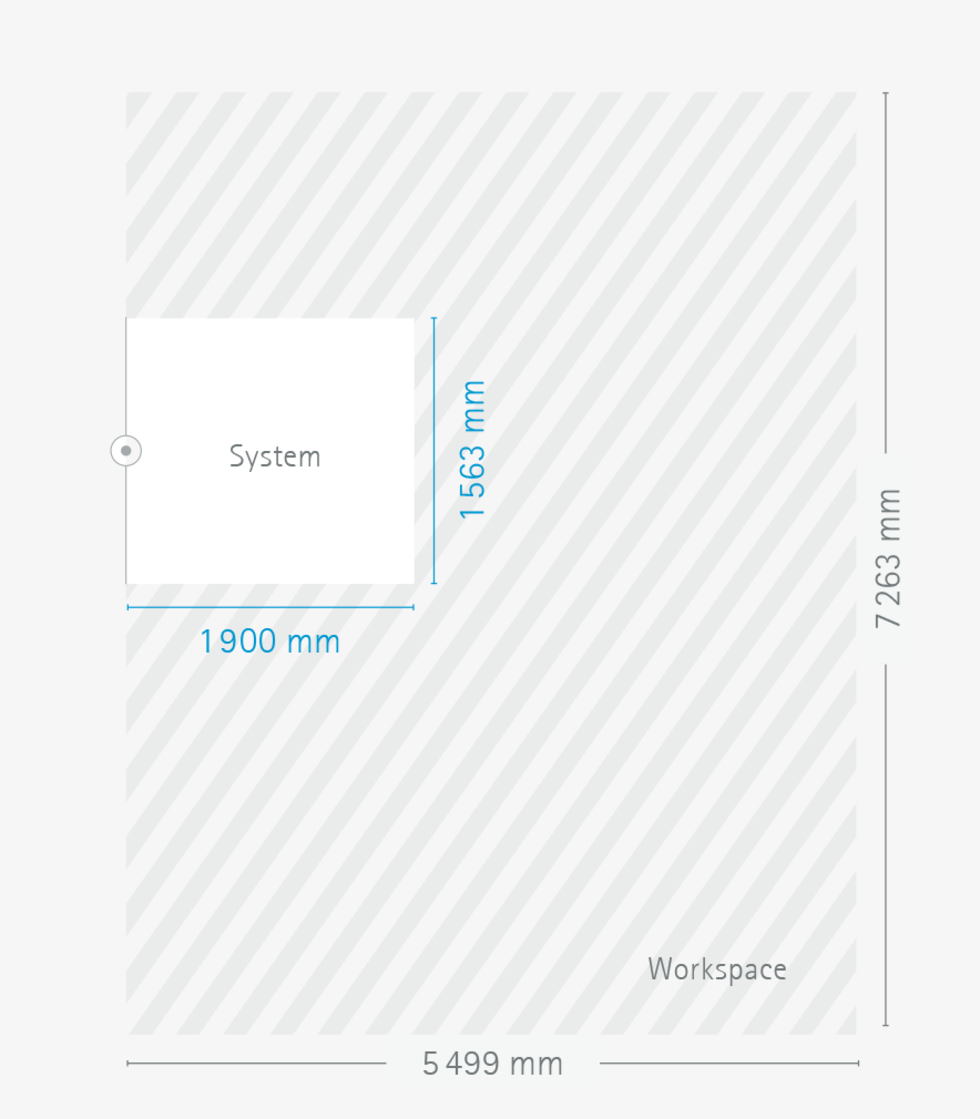

IPM M Setup Station M*

Height: 2,000 mm / Weight approx. 1,400 kg

System
Workspace

MATERIALS & PROCESSES

EOS has exceptional materials expertise and a comprehensive portfolio of highly developed materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the desired property profiles in the best possible way for your products

EOS M 300-4

  • EOS Aluminium AlSi10Mg

  • EOS CobaltChrome MP1

  • EOS MaragingSteel MS1

  • EOS NickelAlloy IN625

  • EOS NickelAlloy IN718

  • EOS StainlessSteel 17-4PH

  • EOS StainlessSteel 316L

  • EOS Titanium Ti64

  • EOS Titanium Ti64 Grade 23

  • EOS Titanium Ti64 Grade 5

OPTIONAL ACCESSORIES

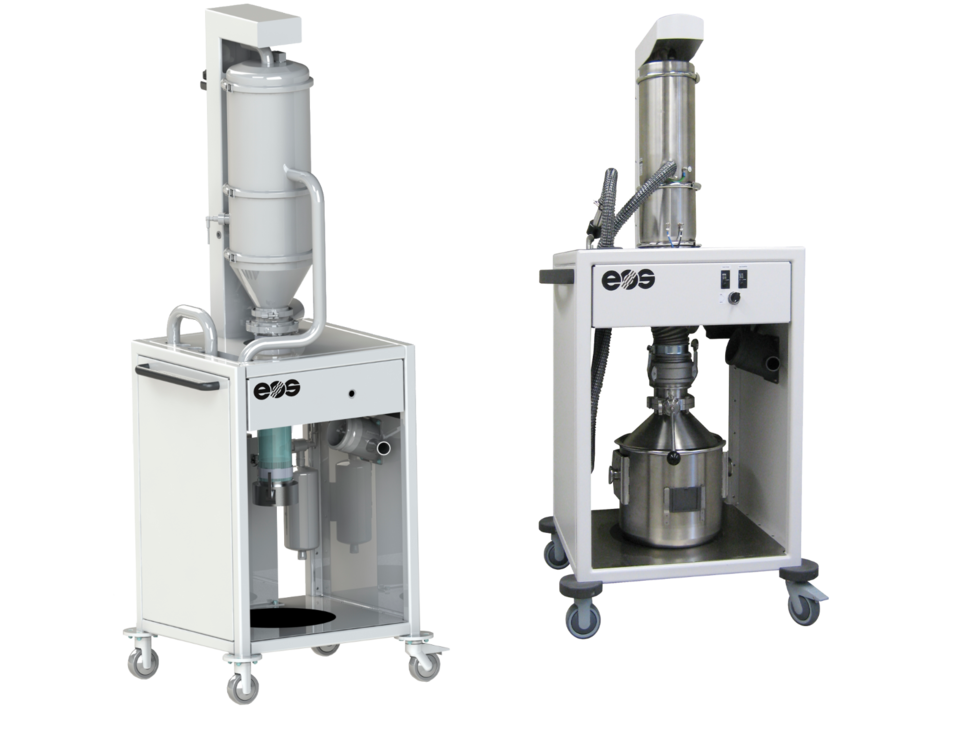

IPCM M Extra

Manual and flexible powder handling

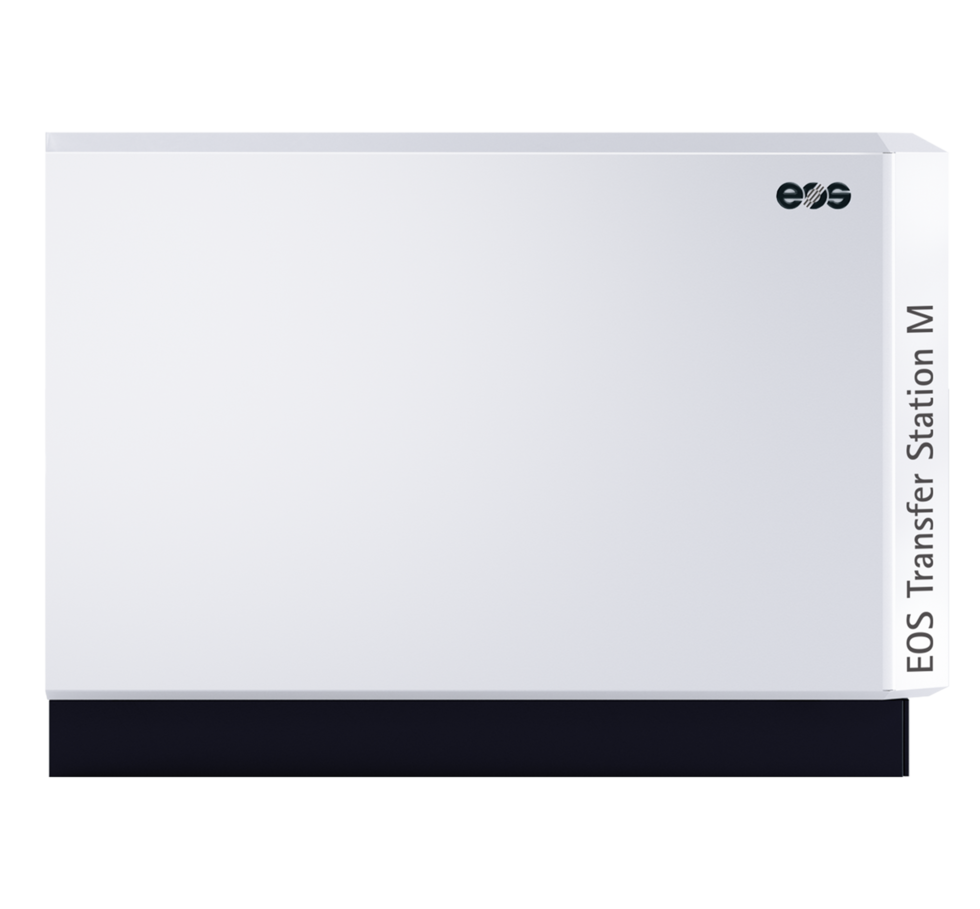

EOS Transfer Station M

Fast switch over of the exchangeable frame

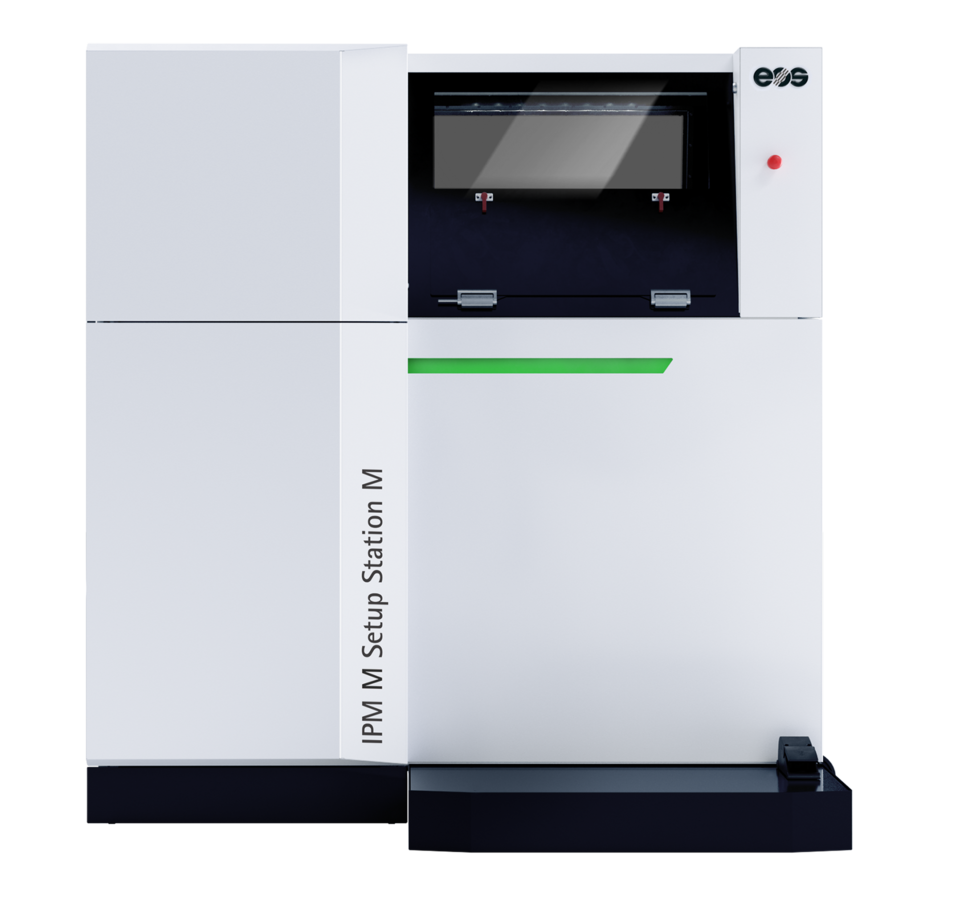

IPM M Setup Station M

Comfortable gas-tight unpacking from two sides and under inert gas

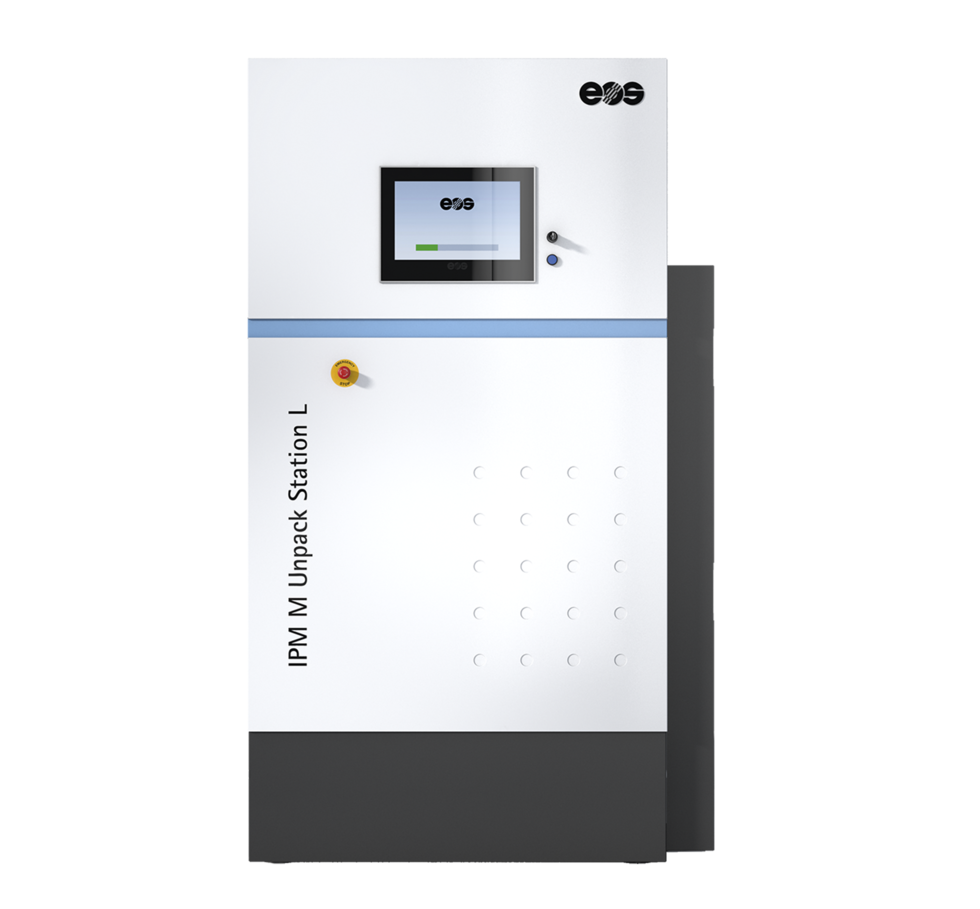

Unpack Module

Automated unpacking and easy integration in the IPM M Setup Station M
