METAL SOLUTIONS

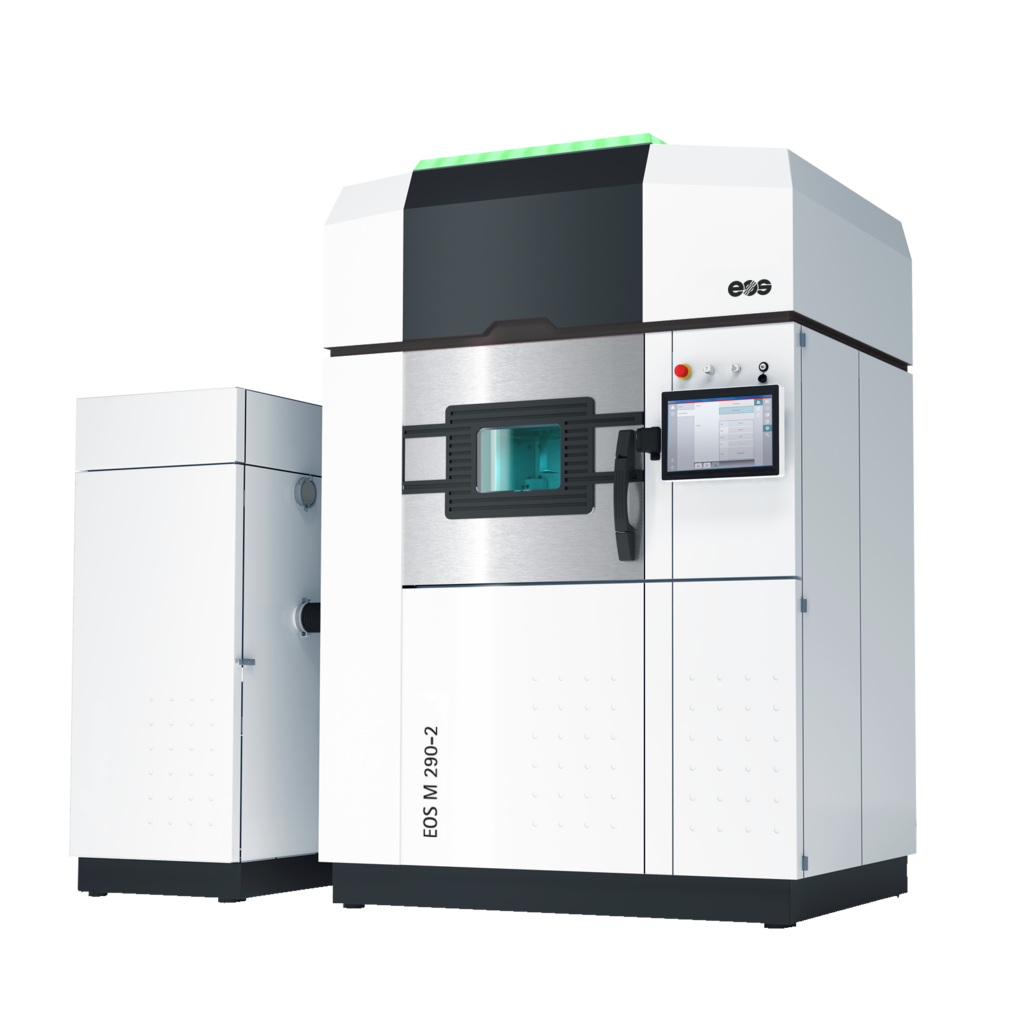

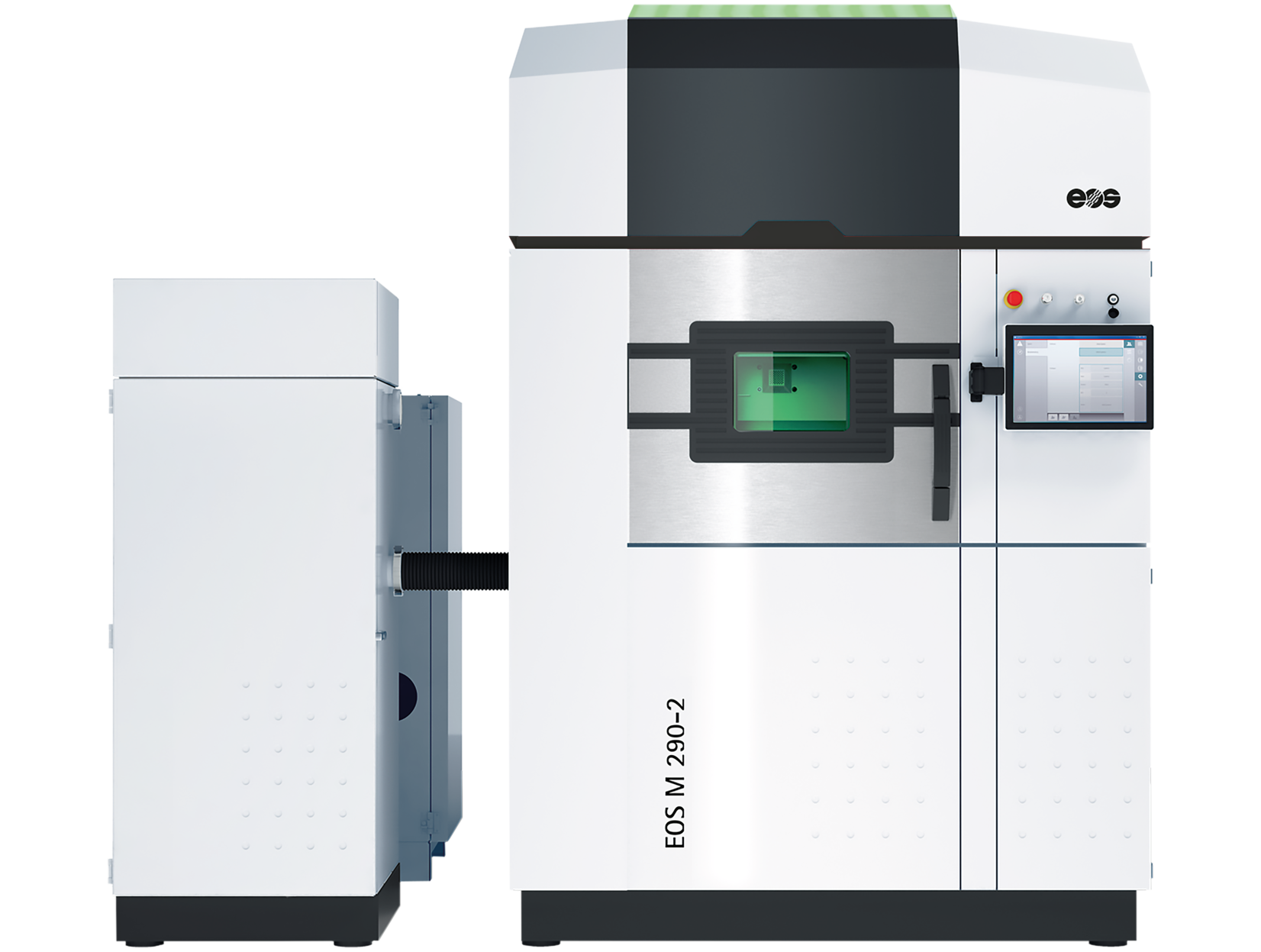

EOS M 290-2
  • Dual 400 W lasers offer full-field overlap and quality consistent to legacy single-field system
  • Increase in productivity with faster printing in the build space
  • Ideal for utilization across a wide range of applications

    *System available in Q4/2024

EXPOSURE MODULE

LASERS
  • 2 x
    400 W

EOS M 290-2

TECHNICAL DATA

BUILD VOLUME 250 x 250 x 325* mm (9.8 x 9.8 x 12.8 in)
LASER TYPE Yb-fiber laser; 2 x 400 W
PRECISION OPTICS 2 F-theta-lens(es); 2 High-speed scanner(s)
SCAN SPEED up to 7.0 m/s (23.0 ft/s)
FOCUS DIAMETER approx. 85 µm (0.00335 in)
POWER SUPPLY 1 x 32 A
POWER CONSUMPTION max. 15.0 kW / typical 5.5 kW
COMPRESSED AIR SUPPLY 7 Bar; 20 m³/h (102 psi; 706 ft³/h)

* Height includes build plate

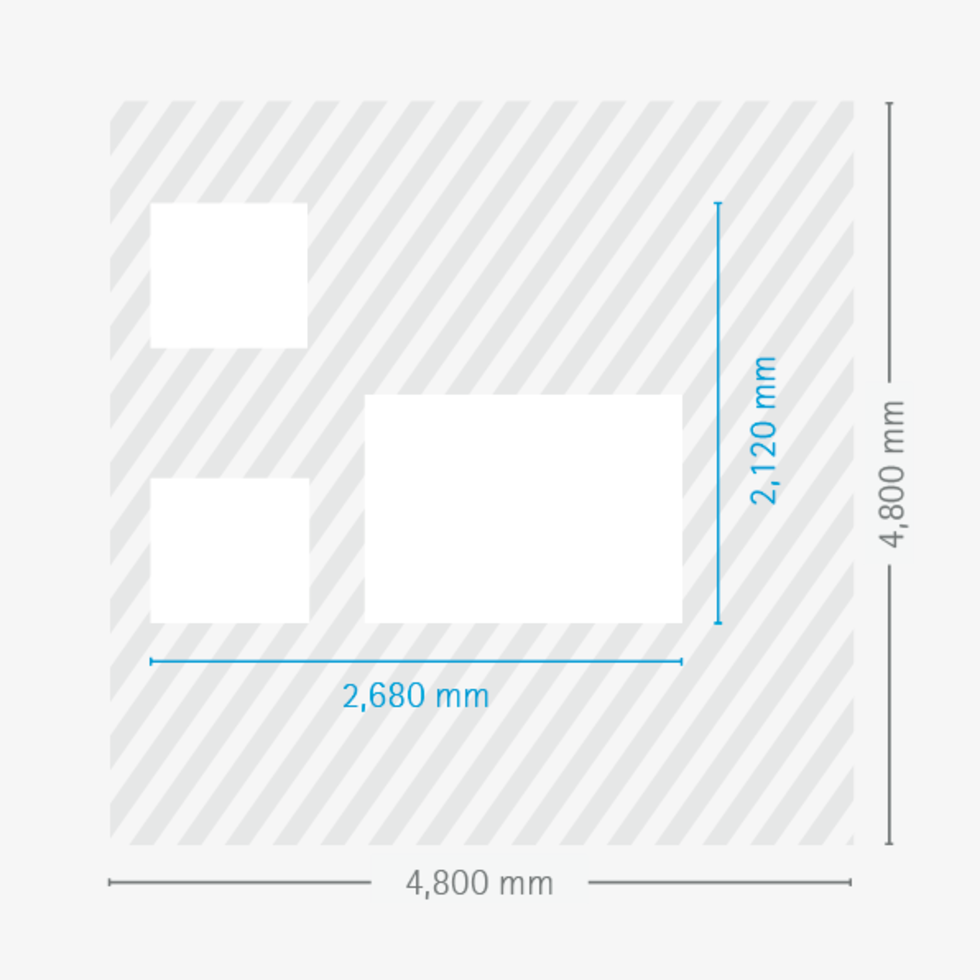

DIMENSIONS & WEIGHT

EOS M 290-2

Height: 2,400 mm / Weight approx. 1,350 kg

System
Workspace

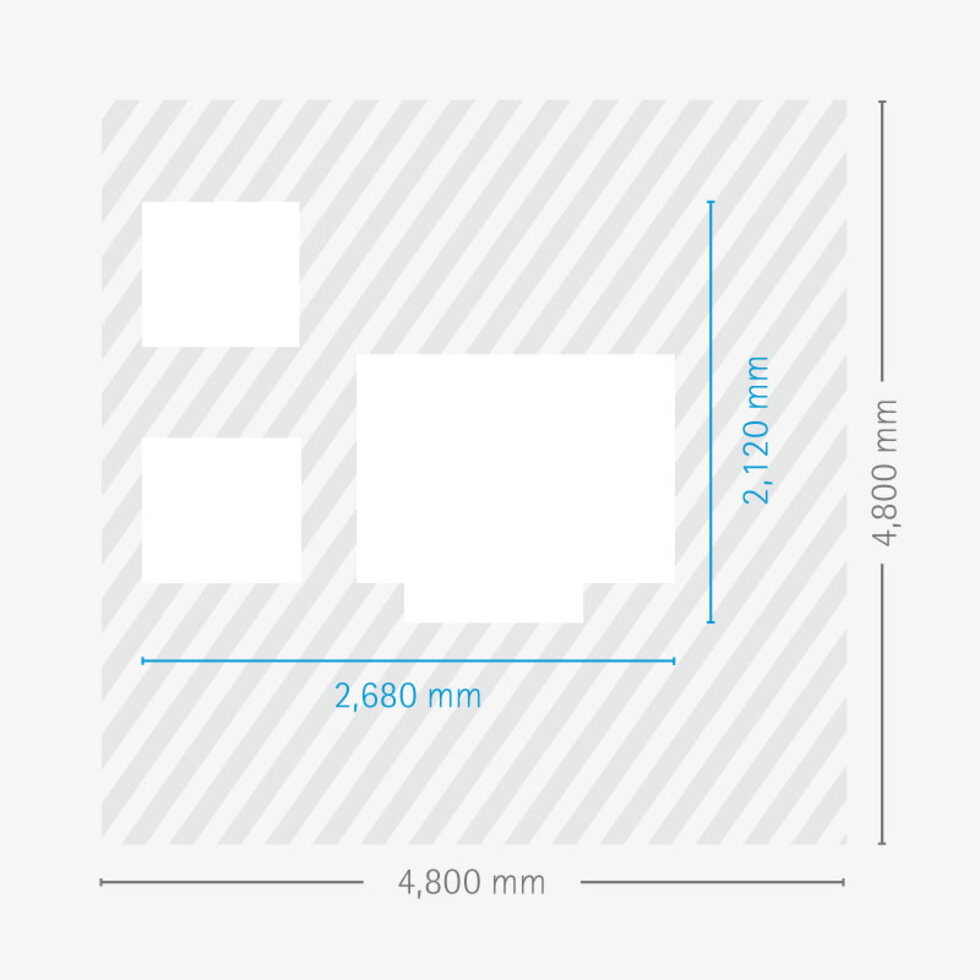

EOS M 290-2 with Comfort Powder Module

Height: 2,400 mm / Weight approx. 1,350 kg

System
Workspace

EOS M 290-2

  • EOS Aluminium AlSi10Mg

  • EOS NickelAlloy IN625

  • EOS NickelAlloy IN718

  • EOS StainlessSteel 17-4PH

  • EOS StainlessSteel 316L

  • EOS Titanium Ti64

OPTIONAL ACCESSORIES

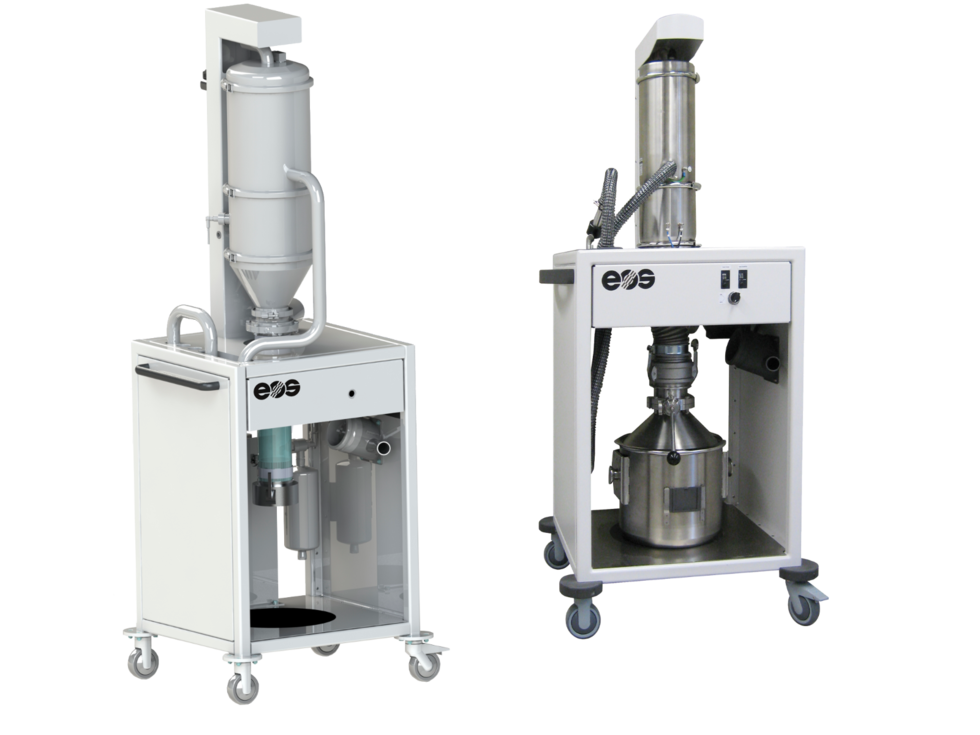

IPCM M Extra

Manual and flexible powder handling

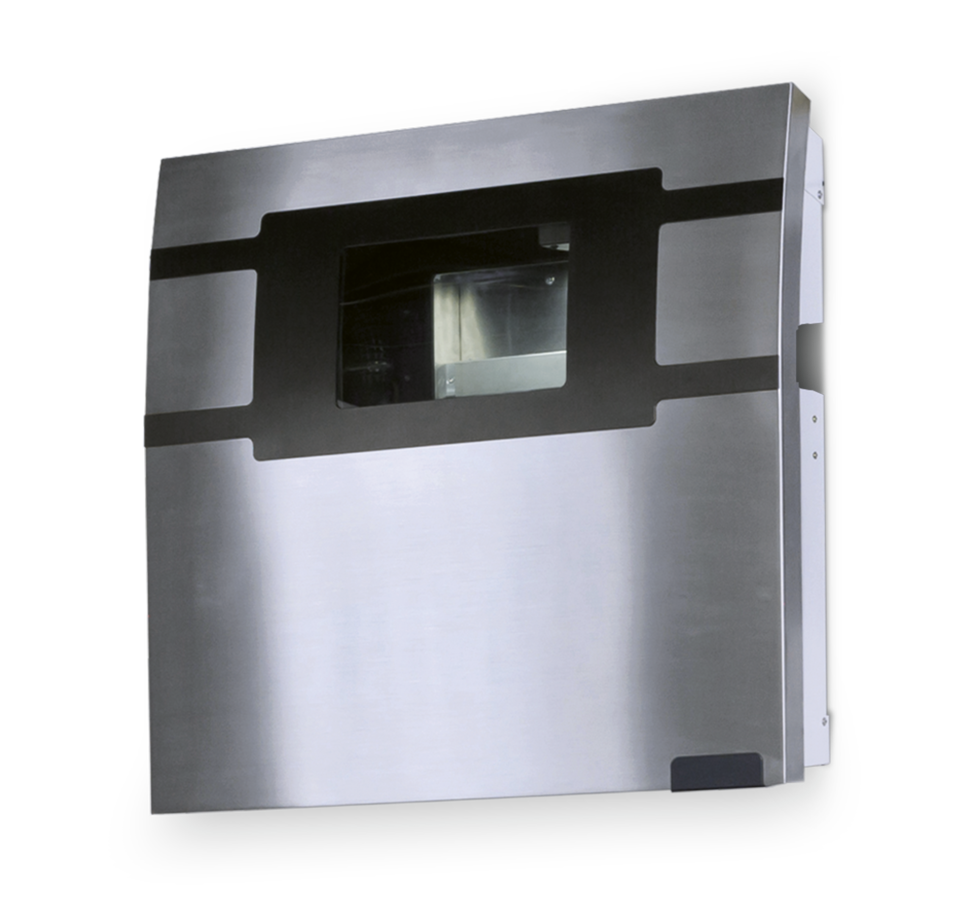

Comfort Powder Module

Safe handling of powder inside the process chamber
