METAL SOLUTIONS
EOS M 290
  • Repeatable Excellence: Exceptional laser quality and detail resolution ensure repeatable results – even for highly complex parts -- every single time.
  • Material Versatility: With the widest range of validated materials and processes available on the market, all your needs are covered.
  • From Start to Part Fast: The EOS M 290 allows fast, flexible, dependable, and cost-effective production of metal parts directly from CAD data.

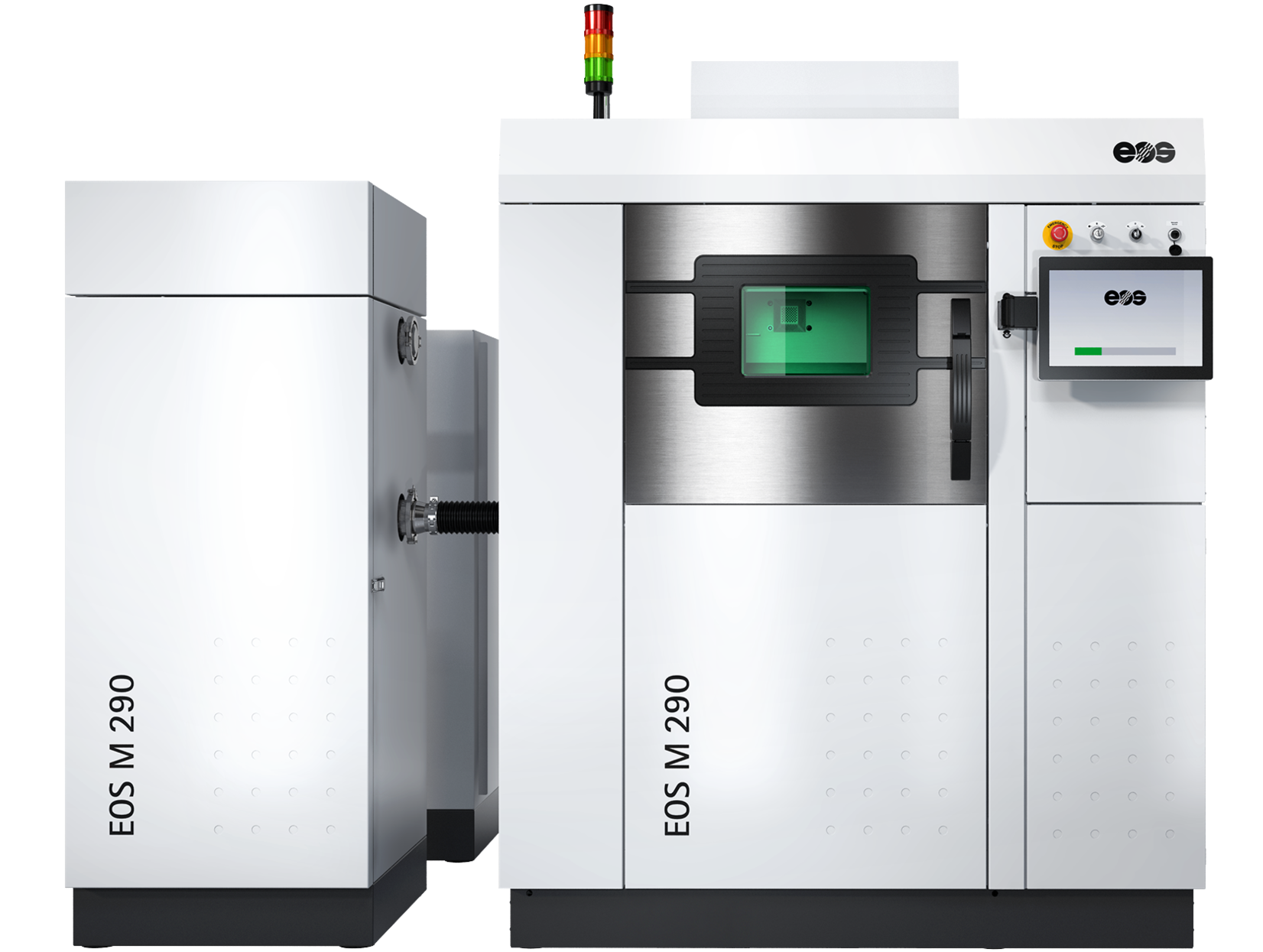

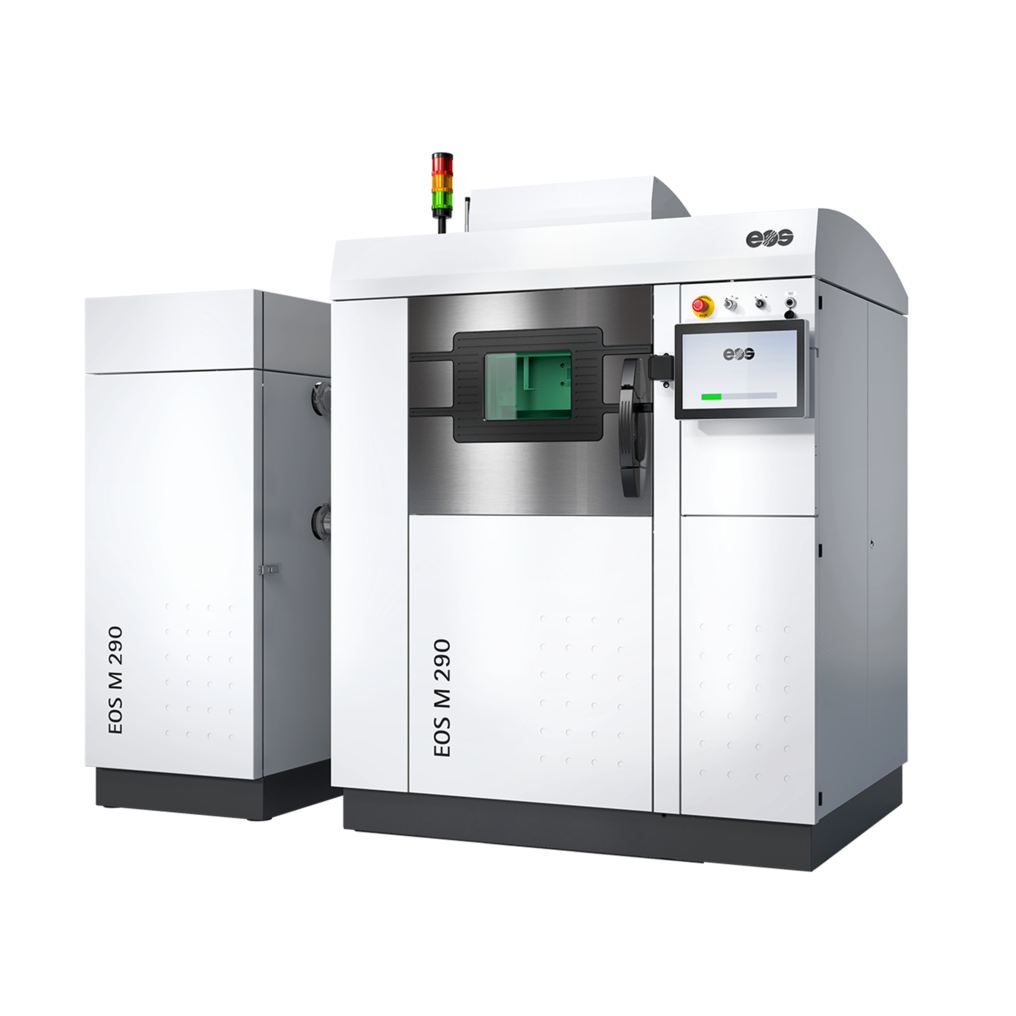

EOS M 290

The Benchmark in Metal AM with Proven DMLS® Quality

The EOS M 290, has been used in the serial production of a wide range of applications since 2014. Its robust and reliable performance has been built on the legacy of its three predecessors, ensuring homogeneous part properties from part-to-part, job-to-job, and machine-to-machine. The wide range of materials, a comprehensive monitoring suite, and the easy integration into your production make it the clear choice for flexible series production of metal parts.

EXPOSURE MODULE

LASERS
  • 1 x
    400 W

Up to two precise lasers expose in a 250 x 250mm square with different optics to choose from and Pulse Modulation enabled.

SOFTWARE

  • EOS BUILD

    EOS Build subscriptions offer enhanced EOSPRINT features for multiple users with flexible material management; Build+ adds more licenses, advanced materials, and training for up to 5 users.

  • EOS SMART MONITORING

    EOS Smart Monitoring utilizes Exposure OT for comprehensive build monitoring and pairs it with Smart Fusion to regulate heat within set parameters in collaboration with EOS Build/Build+.

  • EOS SYSTEM SUITE

    EOS System Suite optimizes production by streamlining processes, integrating with MES and shop-floor IT systems, and generating detailed quality reports.

EOS M 290

TECHNICAL DATA

BUILD VOLUME 250 x 250 x 325* mm (9.8 x 9.8 x 12.8 in)
LASER TYPE Yb-fiber laser; 1 x 400 W
PRECISION OPTICS 1 F-theta-lens(es); 1 High-speed scanner(s)
SCAN SPEED up to 7.0 m/s (23.0 ft/s)
FOCUS DIAMETER approx. 100 µm (0.00394 in)
POWER SUPPLY 1 x 32 A
POWER CONSUMPTION max. 8.5 kW / typical 2.4 kW
COMPRESSED AIR SUPPLY 7 Bar; 20 m³/h (102 psi; 706 ft³/h)

* Only for metal: Building height = Full height minus the height of the building platform (ranging from 35mm to 40mm)

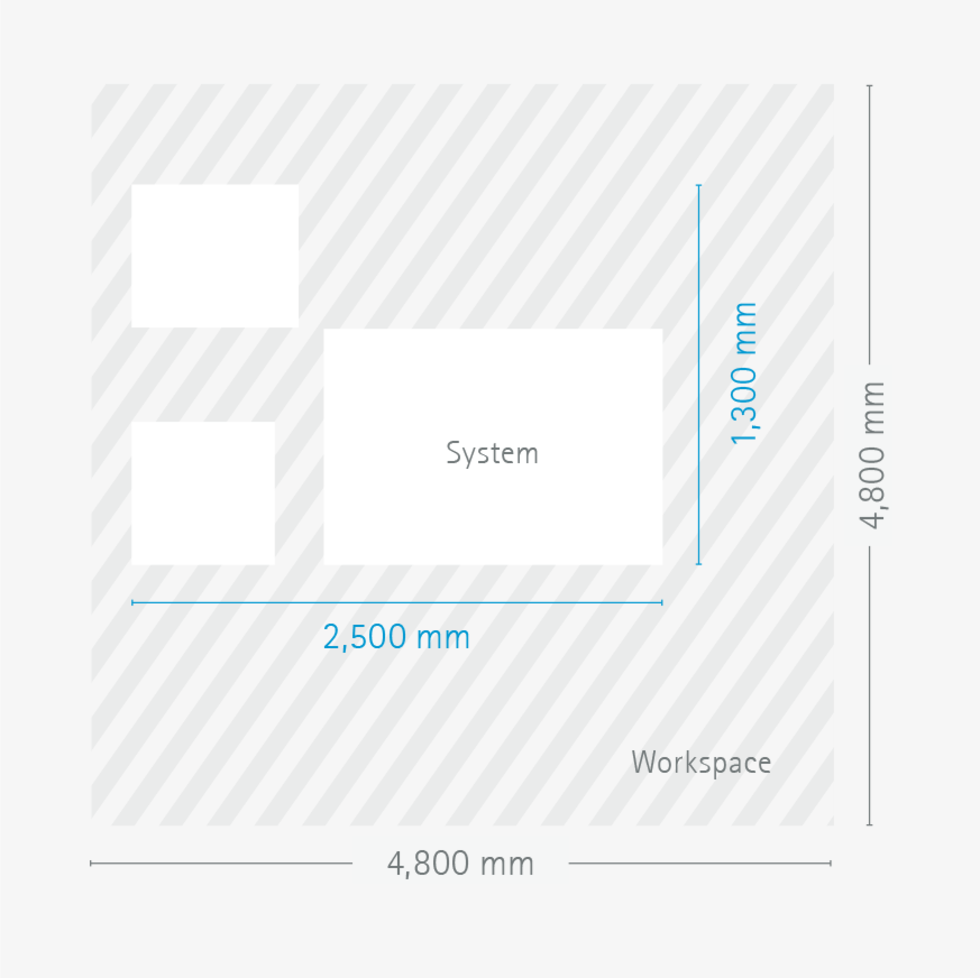

DIMENSIONS & WEIGHT

EOS M 290

Height: 2,190 mm / Weight approx. 1,250 kg

System
Workspace

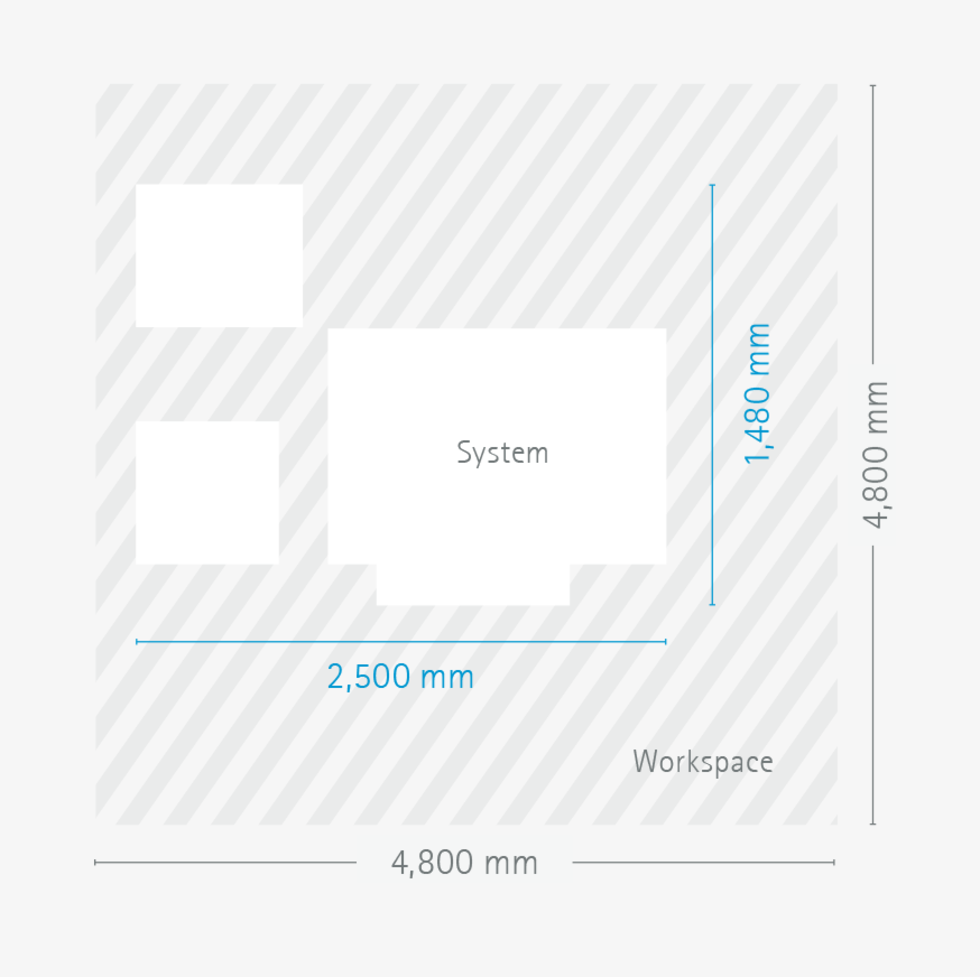

EOS M 290 with Comfort Powder Module

Height: 2,190 mm / Weight approx. 1,250 kg

System
Workspace

MATERIALS & PROCESSES

EOS has exceptional materials expertise and a comprehensive portfolio of highly developed materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the desired property profiles in the best possible way for your products

EOS M 290

  • EOS Aluminium Al5X1

  • EOS Aluminium AlF357

  • EOS Aluminium AlSi10Mg

  • EOS Aluminium Al2139 AM

  • EOS CaseHardeningSteel 20MnCr5

  • EOS CobaltChrome MP1

  • EOS Copper Cu

  • EOS CopperAlloy CuNi30

  • EOS MaragingSteel MS1

  • EOS NickelAlloy HAYNES® 282®

  • EOS NickelAlloy HX

  • EOS NickelAlloy IN625

  • EOS NickelAlloy IN718

  • EOS NickelAlloy IN738

  • EOS NickelAlloy IN939

  • EOS NickelAlloy K500

  • EOS StainlessSteel 17-4PH

  • EOS StainlessSteel 254

  • EOS StainlessSteel 316L

  • EOS StainlessSteel CX

  • EOS StainlessSteel PH1

  • EOS StainlessSteel SuperDuplex

  • EOS Titanium Ti64

  • EOS Titanium Ti64 Grade 23

  • EOS Titanium Ti64 Grade 5

  • EOS Titanium Ti64ELI

  • EOS Titanium TiCP Grade 2

  • EOS ToolSteel 1.2709

  • EOS ToolSteel CM55

OPTIONAL ACCESSORIES

IPCM M Extra

Manual and flexible powder handling

Comfort Powder Module

Safe handling of powder inside the process chamber
